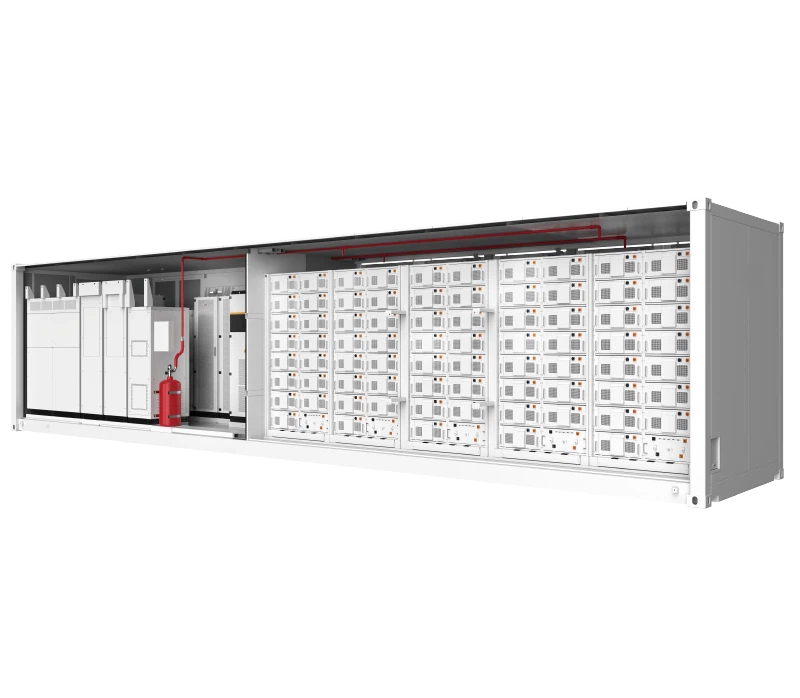

Containerized Battery Container

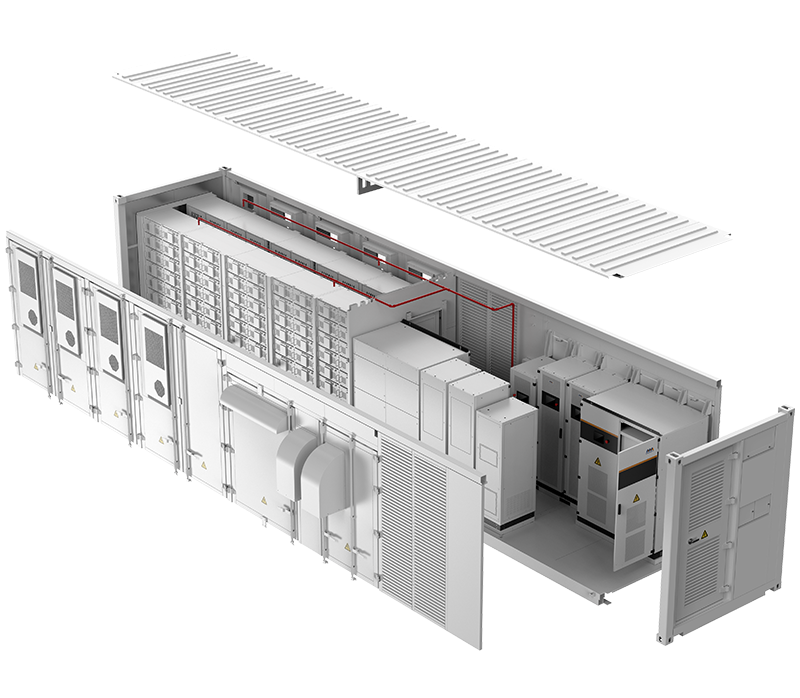

This system adopts an integrated design, incorporating lithium battery energy units, power conversion systems (PCS), fire protection systems, and intelligent temperature control systems. Through the operation strategies preset by the Energy Management System (EMS), the system can interact harmoniously with the power grid, offering functions such as peak shaving, demand management, and emergency backup power. In situations of power restrictions or grid anomalies, it can provide customers with reliable power support, ensuring the continuous operation of critical loads.

1075KWH/2150KWH Technical Specifications

AC Data

Parameter ESSC0500B-1075 ESSC1000B-2150
Rated Power (kW)5001000
Rated Voltage (V)400400
Rated Current (A)7221445
Voltage Range (V)320-460320-460
Rated Frequency50/60Hz50/60Hz
Frequency Range45-55 / 55-65Hz45-55 / 55-65Hz
Power Factor1 (0.8 lead ~ 0.8 lag adjustable)
Overload Capacity110% continuous
Isolation TransformerSupported
On/Off-Grid SwitchingSupported

Battery / System Data

Parameter ESSC0500B-1075 ESSC1000B-2150
Battery TypeLFP 3.2V/280Ah/1C
Nominal Voltage (V)768V/1P240S
Nominal Energy (MWh)1.07522.1504
Operating Voltage Range (V)672-850
Charge/Discharge Rate0.5C@25℃
Cycle Life≥8000 cycles
Dimensions W×D×H (mm)6058×2438×289612192×2438×2896
Net Weight (kg)21,00038,000
Ingress ProtectionIP54
Operating Temperature0~+45℃
CoolingIntelligent Air Cooling
Fire Extinguishing SystemFM200/NOVEC1230
DisplayTouch LCD + Cloud Platform
CommunicationRS485, TCP/IP
